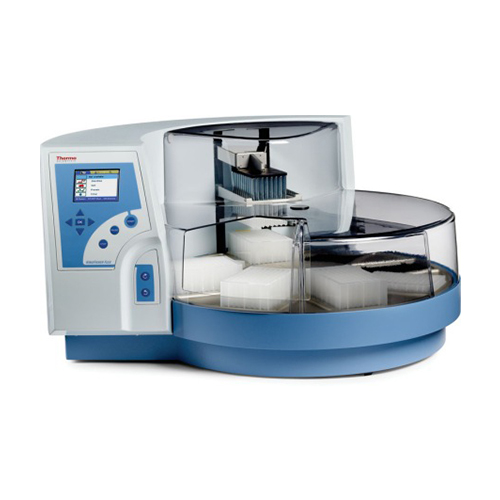

Prepare samples efficiently from a variety of materials with the Thermo Scientific™ KingFisher™ Flex Purification System, which offers highly versatile, automated magnetic-particle processing for DNA/RNA, protein or cell purification from virtually any source. Using revolutionary magnetic particle separation technology, this system provides excellent reproduciblity and quality.
Description
Find a flexible solution for different types of sample processing needs. With 24 magnet heads, customers can raise the processing volume up to 5 mL, resulting in increased yield of the purified product. For higher throughput needs, 96 samples can be processed with 96 magnet head.
- Fully automated system yields high-speed purification of nucleic acids, proteins and cells.
- High throughput system processes up to 96 samples in less than 20 minutes.
- Open and flexible system lets the customer use any magnetic particle-based kit to meet the application demands.
- Easy-to-use Thermo Scientific™ BindIt™ Software provides instrument control, protocol creation and modification.
Recommended for:
Genomics and proteomics
- Target identification
- Veterinary assays
- Biomarker discovery
- Quality control
- Forensics
|
Product Size |
Each |
|
For Use With (Application) |
Genomics and proteomics, target identification, veterinary assays, biomarker discovery, quality control, forensics |
|
Plates per Deck |
24 or 96 |
|
Volume (Metric) Processing |
20µL to 100µL |
|
Plate Type |
24 or 96-well plates:;KingFisher 24 Deep Well plate (200 to 5000µL);Microtiter 96 Deep Well plate (50 to 1000µL);KingFisher 96 plate (20 to 200µL);PCR plate (20 to 100µL) |
|
Particle Size (Metric) |
ca. >1µm |
|
Collection Efficiency of Particles |
> 95% |
|
Heating Temperature |
From +5°C above ambient temperature to +115°C |
|
Weight (English) |
62 lb. |
|
Weight (Metric) |
28kg |
|
Capacity |
96 samples |
|
Depth (English) |
23.6 in. |
|
Depth (Metric) |
60cm |
|
Description |
KingFisher 96 plate, PCR plate |
|
Display |
START / PAUSE / STOP / OK / TURNTABLE ROTATING CLOCKWISE / TURNTABLE ROTATING COUNTERCLOCKWISE / four cursor keys / LCD |
|
For Microplate Type |
PCR Plate (20 to 100µL) |
|
Format |
96-well plate |
|
Height (English) |
15 in. |
|
Height (Metric) |
38cm |
|
Magnetic Rods |
96 in one frame; Interchangeable magnet heads |
|
Width (English) |
26.8 in. |
|
Width (Metric) |
68cm |
